| Article number: | IOCAH15-7T |
| Availability: | Out of stock |
| Delivery time: | 2 to 6 weeks |
| Unit price: | €0,00 / |
Characteristics:
- Powerful charging power
- 1-phase 7kW & 3-phase 11kW available
- Direct CT connection for load balancing Smart Grid
- Plan charging at a lower rate (Dynamic energy contract)
- Smart network
- Internet, WiFi and Bluetooth available
- Start charging with App or charging card
Advantages:
- OCPP1.6J OCPP2.0.1
- Support for smart home balancing
- Remote management and smart charging
- Automatic recovery after a minor failure
- LED light adjustable
◈ Application: Residential/Commercial
◈ Voltage: Single phase:230V 3-phase: 400V+N
◈ Frequency: (Hz) 50/60
◈ Current output: Single phase 32A Max. 3-phase 16A Max.
◈ Connector: Type-2 socket or type-2 plug with 5m cable
◈ Earth Leakage Circuit Breakers:30mA AC & 6mA DC IEC62955 & IEC61008
◈ Electrical protection: Over current, under voltage, over voltage,
too high operating temperature, overvoltage protection, short circuit, earth fault
◈ Indications: Standby(blue), Charging(Flashing blue), Error(red), Warning(Flash red)
◈ Network connections: Internet, WiFi and Bluetooth
◈ Data protocol: OCPP 1.6J, OCPP 2.0.1
◈ Operation humidity: 5%~95% without condensation

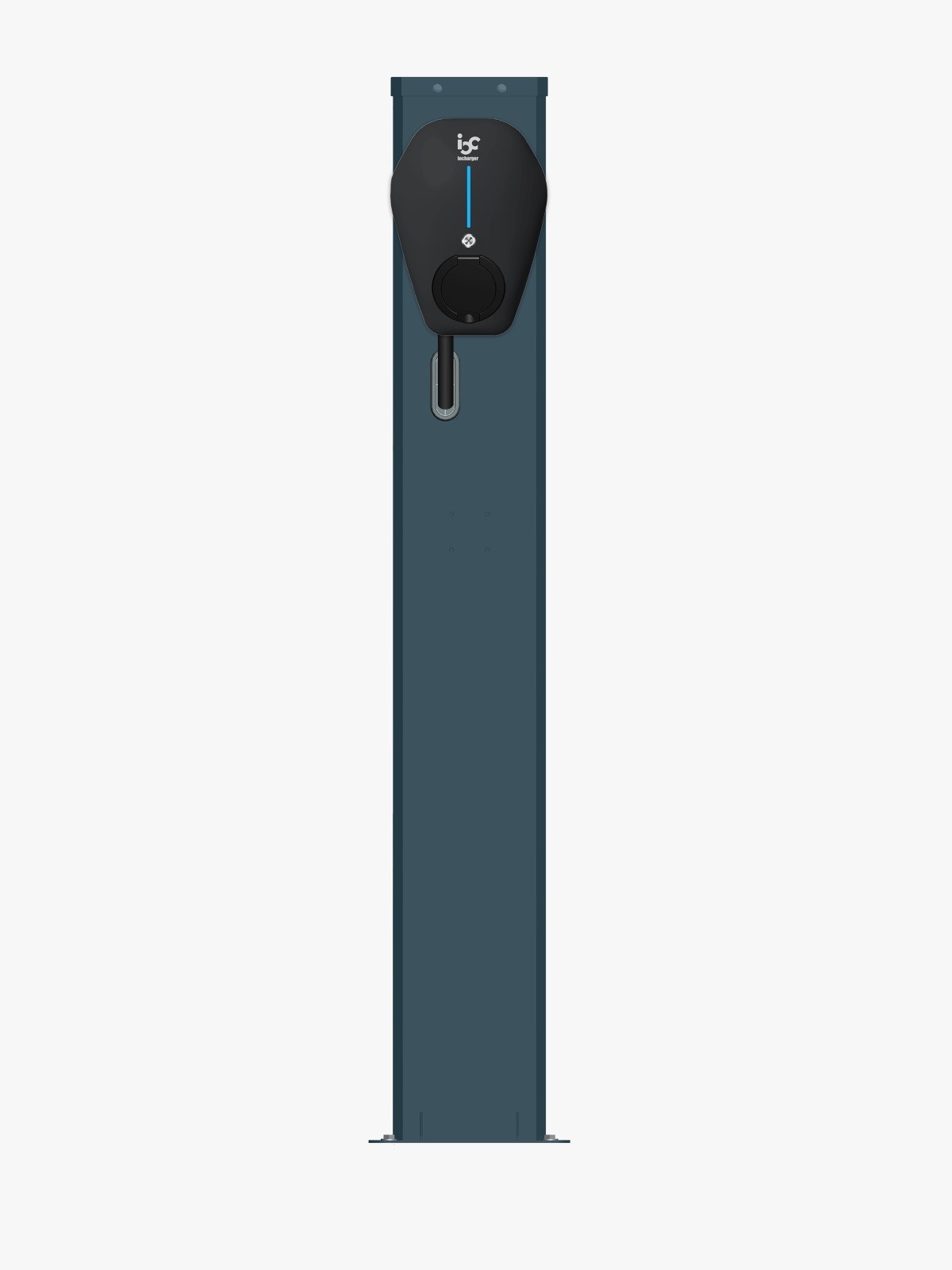

◈ Mounting type: Wall (standard) Floor post (optional)
◈ Protection rating: IP55
◈ Dimensions: Height: 288mm Width: 208mm Depth: 128mm
◈ Mobile App: IOS / Android
