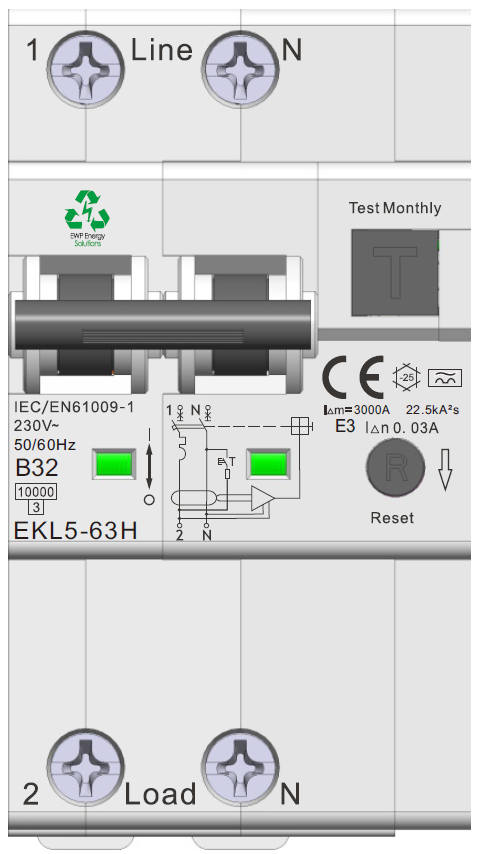

Earth leakage circuit breaker 2P 30mA Type A 32A curve B
Earth leakage circuit breaker 30mA type A and automatic current switch 32A curve B in 1 device.
You can place this earth leakage circuit breaker in front of any charging station if it is connected with a cable with a section of at least 6mm².
You place this in the circle just behind the main differential 300mA Type A.
Attention! If a 300mA Type B main differential is installed, the downstream earth leakage circuit breaker must also be Type B.
For this you use Earth Leakage Circuit Breaker 2P 30mA Type B 32A curve B
- Total number of poles: 2
- Number of protected poles: 1
- Rated voltage: 400 V
- Rated current: 32 A
- Rated fault current: 0.03 A (30mA)
- Type of leakage current: A
- Nominal breaking capacity according to EN 61009: 10 kA
- Rated breaking capacity IEC 60947-2: 6 kA
- Rated short-circuit breaking capacity Icn according to EN 61009-1: 6 kA
- Surge voltage resistance: 0.25 kA
- Voltage type: AC Frequency: 50 Hz Trip characteristic: B
- Switching zero: Yes
- With locking device: No
- Width in module units: 3
- Connectable conductor cross-section single-wire: 0.75 - 16 mm²
- Connectable conductor cross-section multi-wire: 0.75 - 10 mm²
CE certificate
