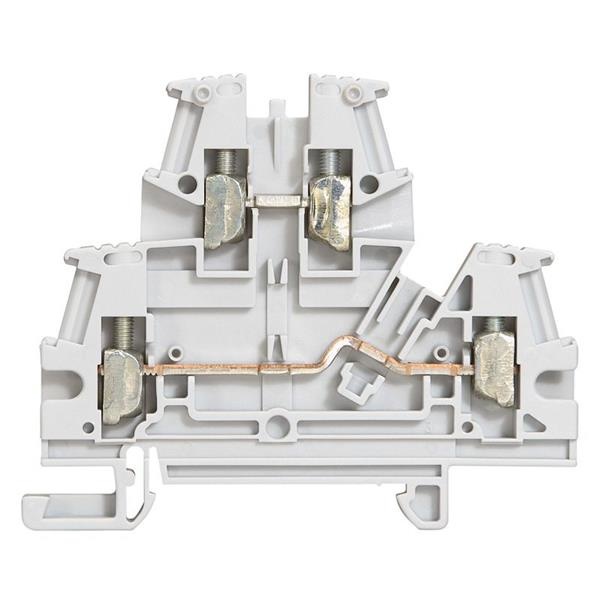

Screw clamp 2 connections - 2 levels - 4 mm² (pitch 6mm), gray - Viking 3

€2,50 Incl. tax
Article number: LE37168
Availability: In stock (98)
Delivery time: 1 to 2 days

DESCRIPTION
Screw clamp 2 connections - 2 levels - 4 mm² (pitch 6mm), gray - Viking 3
Connectable conductor cross section fine wire without wire end sleeve: 0.25mm² - 6mm²
Connectable conductor cross section fine wire with wire end sleeve: 0.25mm² - 4mm²
Connectable conductor cross-section single-wire: 0.25mm² - 6mm²
Connectable conductor cross-section multi-wire: 0.25mm² - 4mm²
Nom. (measuring) current In: 32A
Nominal voltage: 500V
Type of electrical connection 1: Screw connection
Electrical connection type 2: Screw connection
Connection position: Sideways
Mounting method: DIN rail 35mm
Insulation body material: Thermoplastic
Operating temperature: -5 ° C - 40 ° C
Flammability class insulation material according to UL 94: V2
Width / grid size: 6mm
Height at lowest possible mounting height: 62.5mm
Length: 75mm
Cover plate necessary: Yes
Basic color: Gray
