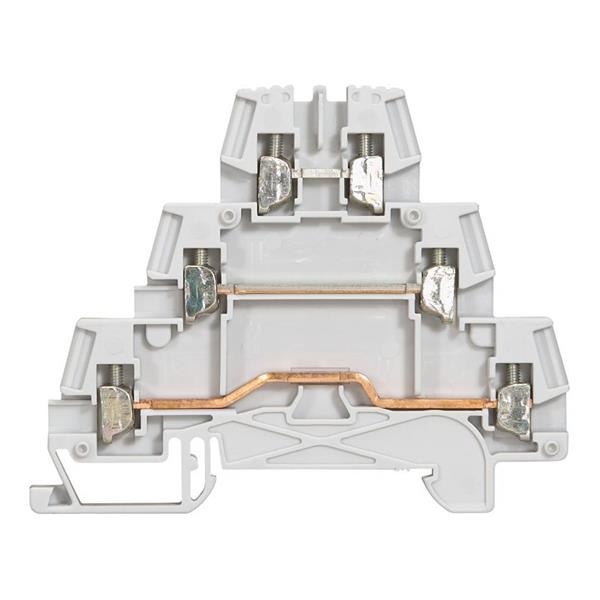

Screw clamp sensor 3 connections 2.5mm² (pitch 5mm), gray

€5,60 Incl. tax
Article number: LE037151
Availability: In stock (6)
Delivery time: 1 to 2 days

DESCRIPTION
Screw clamp sensor 3 connections 2.5mm² (pitch 5mm), gray - Viking 3
Connectable conductor cross section fine wire without wire end sleeve: 0.25mm² - 4mm²
Connectable conductor cross section fine wire with wire end sleeve: 0.25mm² - 2.5mm²
Connectable conductor cross-section single-wire: 0.25mm² - 4mm²
Connectable conductor cross-section multi-wire: 0.25mm² - 2.5mm²
Nom. (measuring) current In: 24A
Nominal voltage: 400V
Type of electrical connection 1: Screw connection
Electrical connection type 2: Screw connection
Connection position: Sideways
Mounting method: DIN rail 35mm
Insulation body material: Thermoplastic
Operating temperature: -5 ° C - 40 ° C
Flammability class insulation material according to UL 94: V2
Width / grid size: 5mm
Height at lowest possible mounting height: 67.5mm
Length: 84.5mm
Cover plate necessary: Yes
Basic color: Gray
