| Article number: | LE37268 |
| Availability: | In stock (35) |
| Delivery time: | 1 to 2 days |
DESCRIPTION

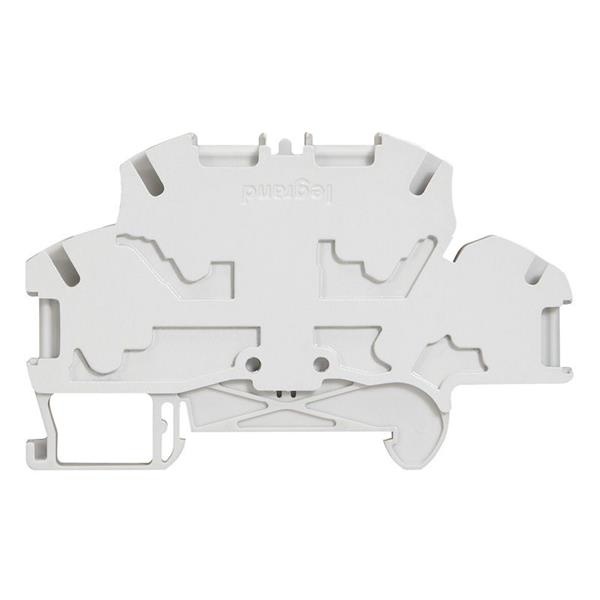

Spring clamp standard 4 conductors - 2 input / 2 output - 6mm pitch - Viking 3
Connectable conductor cross section fine wire without wire end sleeve: 0.5mm² - 6mm²
Connectable conductor cross section fine wire with wire end sleeve: 0.5mm² - 4mm²
Connectable conductor cross-section single-wire: 0.5mm² - 6mm²
Connectable conductor cross-section multi-wire: 0.5mm² - 4mm²
Nom. (measuring) current In: 32A
Nominal voltage: 500V
Type of electrical connection 1: Spring clamp connection
Type of electrical connection 2: Spring clamp connection
Connection position: Angled
Mounting method: DIN rail 35mm
Insulation body material: Thermoplastic
Operating temperature: -5 ° C - 40 ° C
Flammability class insulation material according to UL 94: V2
Width / grid size: 6mm
Height at lowest possible mounting height: 56mm
Length: 90mm
Cover plate necessary: No.
Basic color: Gray
